Parts for the

T18 & T19 Transmissions

The T18 is fully supported for parts. The transmission remains in aftermarket production at Novak and is still one of the most popular truck, industrial and Jeep conversion transmissions available.

The Master Rebuild Kit

Our master rebuild kits have been assembled for our customer's rebuilds as well as the thousands of rebuilds we do at Novak. It is the most complete kit we've seen anywhere and features all the consumable and wear item components. Cut-rate "BK" basic kits seen on the market don't hold a candle to the Novak kits' quality and completeness.

These rebuild kits set the industry standard for reliability, using only premium bearings and seals from proven manufacturers like Timken, JTEKT, Nachi, CR Seals, and more. No single brand makes every part we require, so we hand-select each component to ensure unrivaled performance and longevity.

Novak kits include:

• World class deep ball roller and needle bearings
• Premium seals with best sealing forms and materials
• Thick, strong gaskets
• Precision brass synchro (blocker) rings
• Top cover rebuild components: plugs, poppet springs, balls, interlocks, etc
• New synchronizer struts and springs
• Instructions, based on our own in-house rebuilds
• Access to Novak's T18 rebuild techs if you have rebuild questions

Rebuild Requirements

It is common for our customers to do top-level rebuild work, using good methods and by following our included instruction guide.

We suggest the rebuilder have access to a set of snap ring pliers, a bearing puller and a hydraulic press.

Related Products

Kit PTO-K, PTO cover, six bolt style, billet

This is the rigid PTO cover that every Novak-built transmission gets, and we recommend them to our customers. They seal better and stay that way for far longer than the stamped steel versions from the factory. Stainless button-head fasteners are included.

K-PTO

T18 & T19 Transmission Package, Turn-Key

We've built thousands of T18 for customers around the planet. We source, remanufacture and build these in-house to your request. We then dyno test, and profesionally package and deliver it to your location, adapted and ready for installation. See and order one here.

Also available as part of our popular Turn-Key powertrain program.

Other Components

Because we manufacture new T18 assemblies at Novak, essentially all parts for the T18, including gears, shafts, factory adapters & tailhousings, retainers, etc. are available. For anything not shown, contact us.

For your reference, all asterixed * items below are included in our master rebuild kit, above.

Items indicated with a "‡" are included in the Small Parts Kits below.

SP18-50 — Kit, small parts, T18 transmission SP18-50Y — Kit, rebuild, shift control housing, T18 transmission SP19-50 — Kit, small parts, T19 transmission SP19-50Y — Kit, small parts, T19 transmission

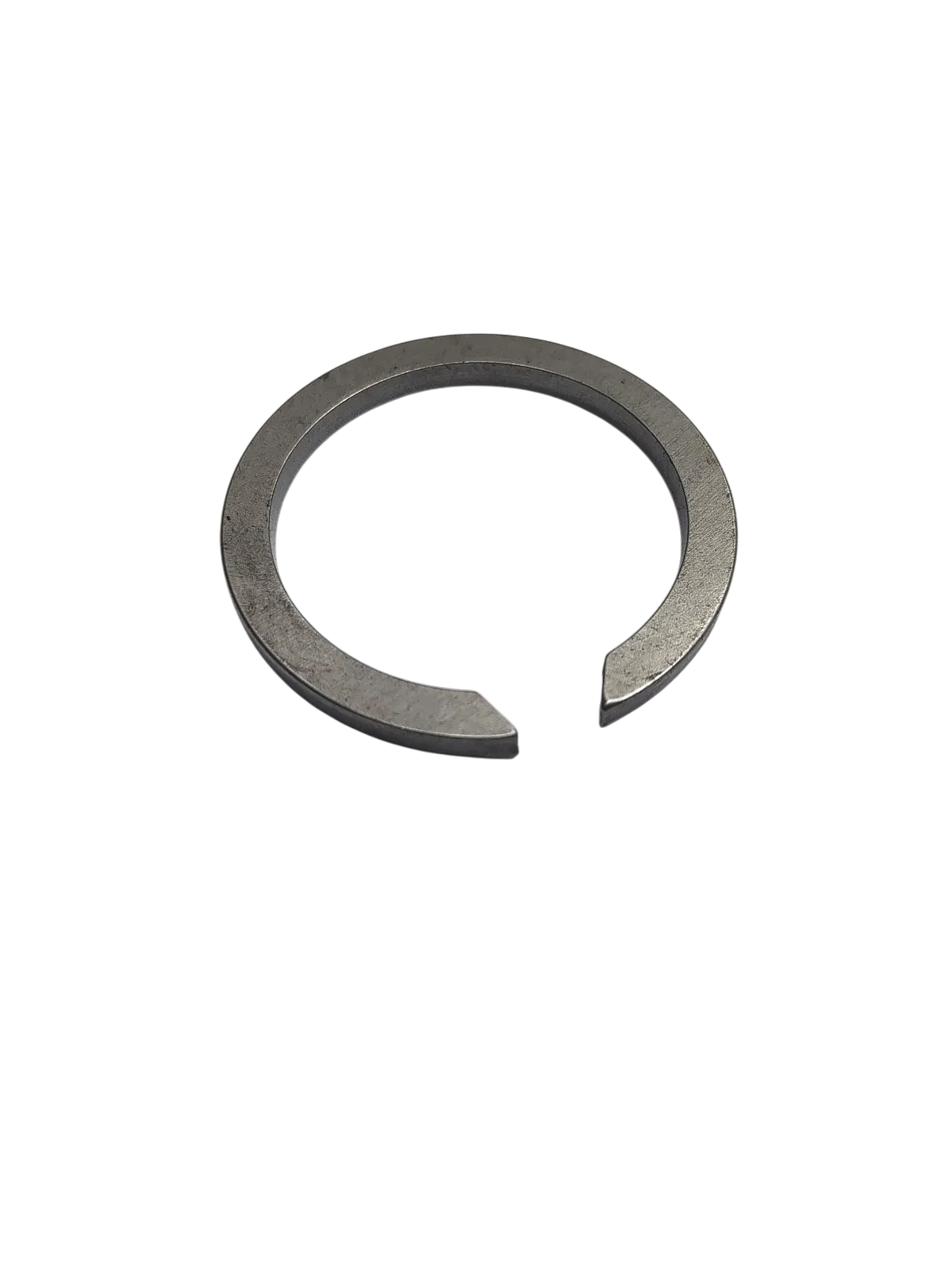

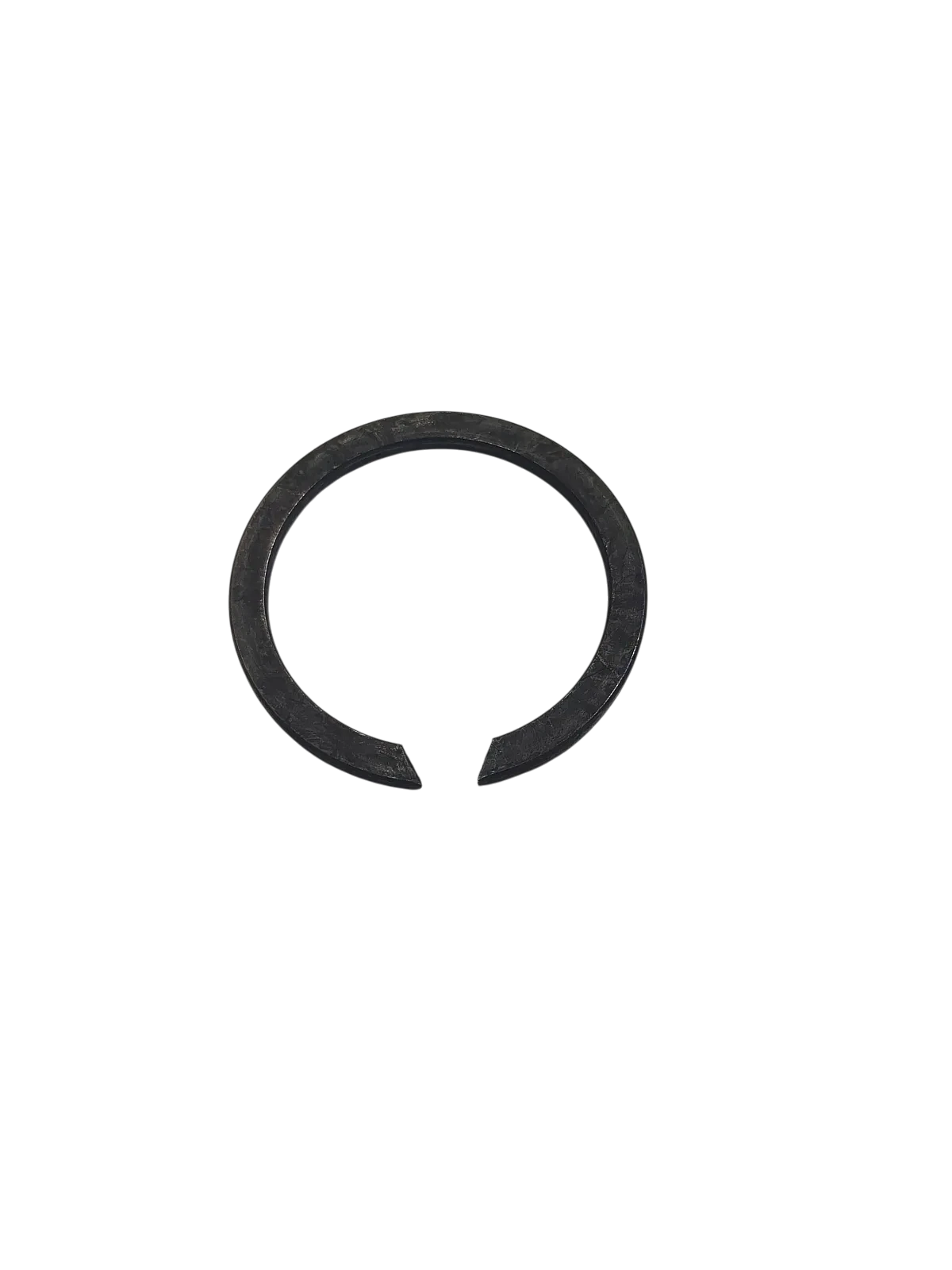

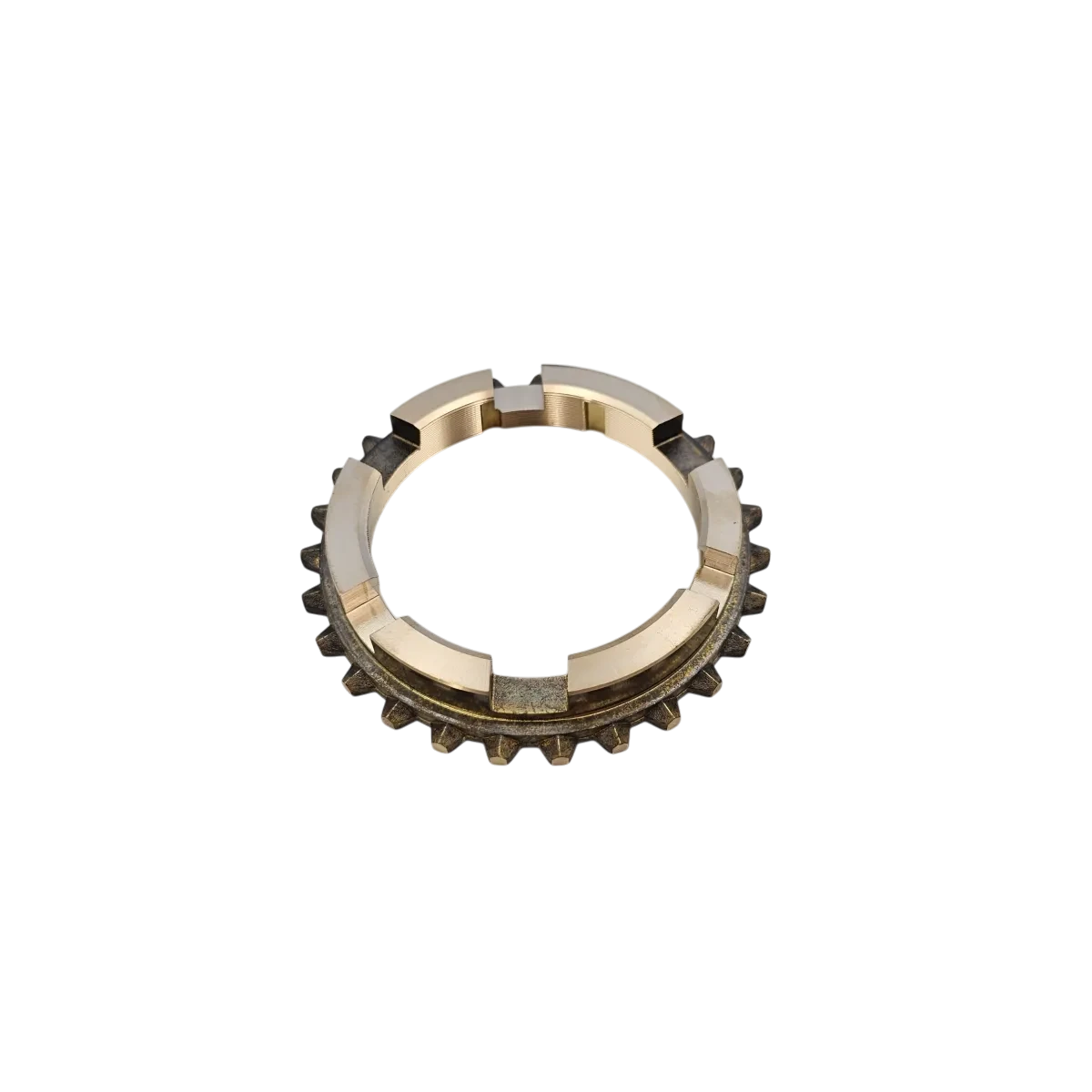

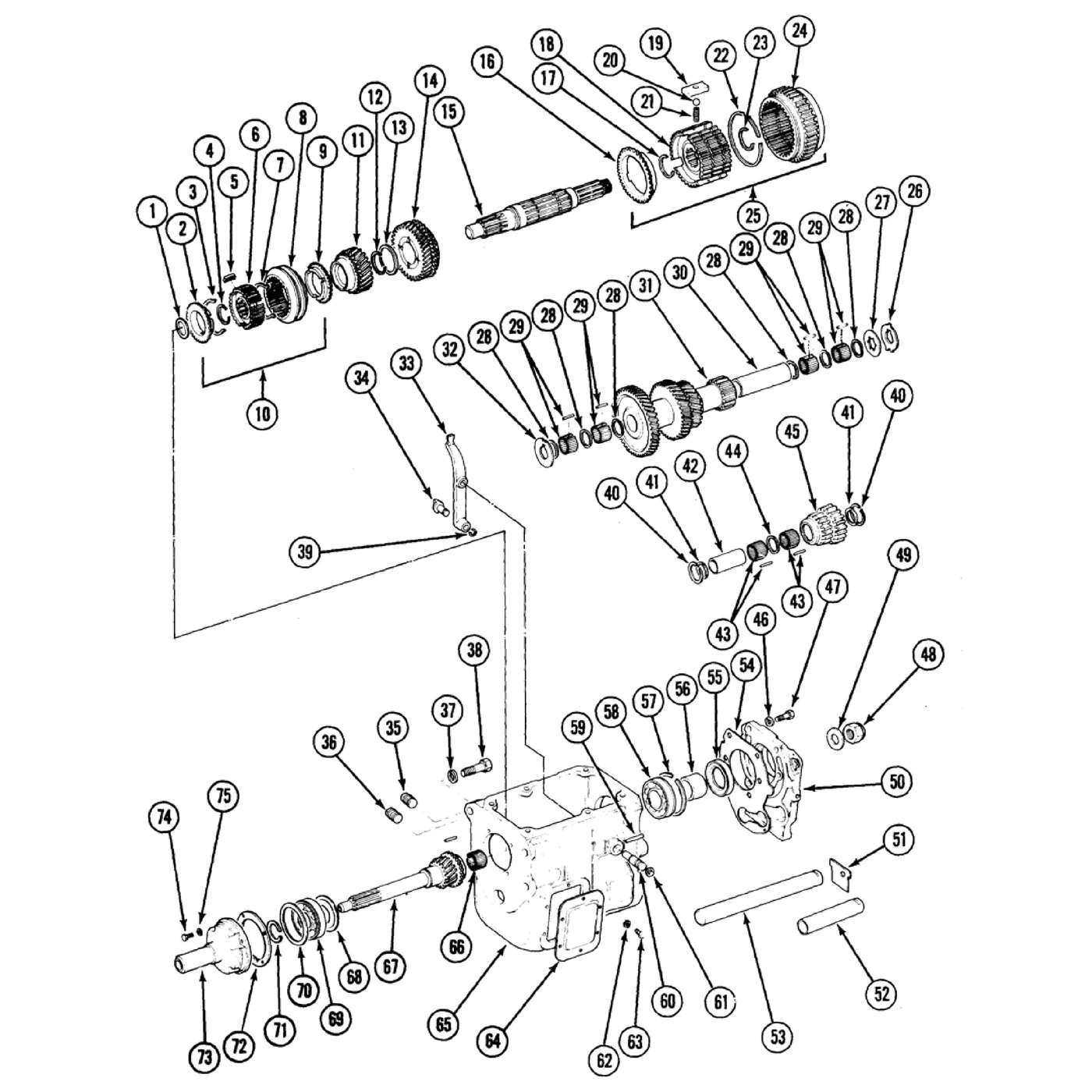

1. T97-29 — Mainshaft pilot bearing roller spacer *‡ 2. 1301-091-004 — Third/Fourth blocking ring * 3. 4682AH — Third/Fourth retaining ring *‡ 4. 4746 — Third/Fourth synchronizer snap ring *‡ 5. T95-135 — Third/Fourth shifting plate (3) 5. T16-13 — Third/Fourth shifting plate (3) 6. Third/Fourth clutch hub 7. 4682AH — Third/Fourth retaining ring 8. Third/Fourth clutch sleeve 9. 1301-091-004 — Third/Fourth blocking ring * 10. AT19-2.5 — Third/Fourth gear synchronizer assembly 11. T18-11 — Third gear 11. T18A-11 — Third gear 12. 4745D — Mainshaft snap-ring *‡ 13. T98-63 — Second gear thrust washer 14. T18-31 — Second gear 14. T18B-31 — Second gear 14. T18C-31 — Second gear 15. Mainshaft 16. T98-83 — Second gear blocking ring * 17. 4745D — Mainshaft snap-ring 18. T98-80 — First/Second clutch hub 19. T98-82 — First/Second shifting plate 20. 38625 — Poppet ball *‡ 21. T87D-42A — Poppet spring *‡ 21. T813-42 — Poppet spring 22. 4773 — First/Second insert spring 23. 4745D — Mainshaft snap-ring *‡ 24. T18-12 — First/Second clutch sleeve 25. AT98-80 — Second gear synchronizer assembly 26. T98-33 — Countershaft gear thrust washer (steel, rear) *‡ 27. T18-32 — Countershaft gear thrust washer (steel-backed bronze, rear) *‡ 28. T97-29 — Countershaft gear bearing washer *‡ 29. T97-166 — Countershaft gear bearing rollers *‡ 30. T98-28A — Countershaft gear bearing spacer 31. T18-8 — Countershaft gear 31. T18C-8 — Countershaft gear 32. T98-30 — Countershaft gear thrust washer (front) *‡ 33. T98-54N — Reverse shifting arm 34. T19-51 — Reverse shifting arm shoe 35. 444752 — Filler plug 36. 444752 — Drain plug 37. Lock washer 38. Bolt, transmission to clutch housing 39. 4747A — C-washer 40. 4828F — Reverse idler gear snap-ring 41. T98-84A — Reverse idler gear thrust washer 42. T98-85A — Reverse idler shaft sleeve 43. 125X1SPA — Reverse idler gear bearing rollers 44. T98-87A — Reverse idler gear bearing washer 45. AT18-10 — Reverse idler gear 46. Lock washer 47. Adapter plate bolts 48. Drive gear locknut 49. Washer 50. Adapter plate 51. T97-48 — Countershaft lockplate *‡ 51. 4501 — Countershaft lockplate *‡ 51. T19-46 — Countershaft lockplate *‡ 52. 1301-568-002 — Reverse idler gear shaft 53. 1301-568-001 — Countershaft 54. 6371 — Adapter plate gasket *‡ 54. 17-55A — Adapter plate gasket *‡ 54. 8188 — Adapter plate gasket *‡ 55. 21210 — Adapter plate seal *‡ 55. 16925 — Adapter plate seal *‡ 55. 376074 — Adapter plate seal *‡ 56. T18-75.5 — Speedometer gear spacer 56. T18-1698 — Speedometer gear spacer 56. T98-75.5 — Speedometer gear spacer 57. 4745E — Rear bearing locating snap-ring 58. 6308N — Rear bearing *‡ 59. 103565 — Reverse shifting arm pivot pin 60. T98-55N — Reverse shifting arm pivot 60. T18-55 — Reverse shifting arm pivot 61. T98B-108 — Reverse shifting arm pivot O-ring *‡ 62. 91102A031 — Washer 63. 92865A621 — Side cover bolt 63. 92949A622 — Side cover bolt 64. BIL-PTO-T18 — Side cover 64. T53-160B — Side cover 64. BIL-PTO — Side cover 65. Transmission case 66. T97-166 — Mainshaft pilot bearing rollers *‡ 67. Clutch shaft 68. T90A-136A — Oil slinger washer 69. 6308N — Front bearing *‡ 69. 1308SG1 — Front bearing *‡ 70. 4745E — Front bearing locating snap-ring 70. 4774 — Front bearing locating snap-ring 71. 4816 — Front bearing lock ring 71. 4816A — Front bearing lock ring 72. 17-55B — Front bearing cap gasket *‡ 73. Front bearing cap 74. 92865A583 — Front bearing cap bolts 75. 91102A030 — Lock washer
