    Parts for the
    Dana Model 18 Transfer Case

    Shop individual Dana 18 parts on the exploded diagramClick any number on the diagram to find that part · 58 parts available online Dana Model 18 Transfer Case

    The Jeep & IH Dana Spicer 18 is still one of the most respected transfer cases on the trail. Professional level repair, assembly and upgrade work is possible for the conscientious DIY builder.

    In addition to our master rebuild kits, we offer nearly all parts at the component level, as well as several upgrade part options.

    These kits fit all Jeep Dana 18 Transfer cases and most IH Dana 18 transfer cases.

    The Master Rebuild Kit

    Our master rebuild kit has been assembled for our customer's rebuilds as well as our own. It is the most complete kit we've seen anywhere and features all the consumable and wear item components. Our kits include the basics offered by other sources, but many additional items, comprising:



    Kit 18MR-1, master rebuild, Dana Spicer Model 18 transfer case, 3/4” intermediate shaft version

    18MR-1;18MR-2;18MR-3

    Our exclusive intermediate shafts are made at Novak from an alloy gear steel and case-hardened to exceptional hardness and have o-ring grooves at both ends, assuring a better seal than factory; extra o-rings are also included.

    There are three master rebuild kits available; one for each of the three major generations of the Model 18.

    Installation Requirements

    It is very common for our customers to do top-level rebuild work, using good methods and by following our included instruction guide. We suggest the rebuilder have access to a set of snap ring pliers, and a small arbor press, in addition to standard shop tools. The full rebuild procedure is covered here.

    The Intermediate Shaft Kits

    These kits are a reduced version of our Master Kits. They contain the specially hardened intermediate shaft, O-rings, thrust washers, bearings and snap ring.

    tcm lr dana 18 transfer case intermediate shaft kit

    TCM
    tce lr ana 18 transfer case intermediate shaft kit

    TCE
    Kit TCL, intermediate shaft, Dana 1-1/4" transfer cases

    TCL

    Dana 18 Billet Bottom Cover Pan

    This extended capacity, anodized billet aluminum bottom pan solves a few Dana transfer case dilemmas:

    Included are the stainless socket head button cap screws, drain plug and sealing washer. Read the review at 4x4review.com

    Dana 20 billet deep cover pan

    D328-D

    Dana 18 PTO Port Cover

    Cover, PTO port, Dana 18 transfer case, aluminum, black anodized

    Utility meets eye-candy. But, go ahead and get it muddy if you'd like.

    After seeing the difficulty of finding Dana 18 PTO covers, we added this one to our line-up. It's made from 3/16" thick aluminum (great for heat dissipation), media tumbled and anodized black. We follow up with a little engraving. Because of its rigidity, it will seal better than factory PTO cover.

    F-PTO18

    Dana 18 Gaskets & Seals Set

    Kit GS18, gaskets, seals, and shim pack for the Model 18 & 20 transfer cases

    There's not a better gaskets and seals kit available. The pan gasket itself (otherwise the most prone to leaking) is cut from a rubber-cork compound.

    GS18

    Dana 18 Billet Tailhousing

    Dana 18 output housing

    Not only are factory Dana 18 tailhousings in short supply, but they're not all that great when they are available. After building more than a thousand Dana 18's, we've reimagined this crucial part of them with a 9-way o-ring sealing design and internal shimming scheme that does away with the external, leak-prone shim packs. They are then finished in gunmetal gray anodizing. We improved everything and these are now the tailhousing of choice for every Dana 18 we build in-house.

    Kit, tailhousing, Dana 18 billet rear bearing cap assembly

    K-C18-19-31

    The K-C18-19-31 kit is not for the parking brake version of the Dana 18



    Dana 18 Exploded Parts Diagram

    Click a number on the diagram to find that part, or search the list. 58 of the 89 parts listed can be ordered online — for anything else call 877-602-1500.

    Shaft-size parts (35, 52, 53, 54) come in three versions: 3/4", 1-1/8" and 1-1/4" intermediate shaft. Match them to your case, or call us.

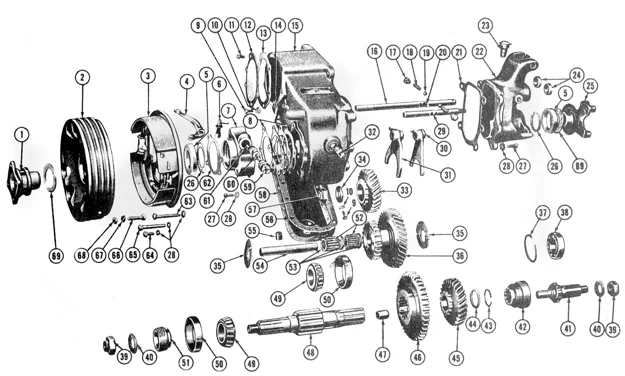

    Dana 18 Transfer Case exploded diagram
    Pinch or use + to zoom
    Available onlineCall to order / not sold separately
    1. Companion flange, rear output
      #116714 Flange, companion yoke, Dana 18 rear output, early
      Early style
      Call to order
    2. Parking brake drum
      #A932 Drum, emergency / parking brake, Dana 18 transfer cases
      Call to order
    3. Parking brake shoes
      #643055 Dana 18 Transfer Case Parking Brake Shoes
      $75.75
    4. Brake operating lever
      #A22-2B Lever, brake cam, T18
      Call to order
    5. Rear output seal, double-lip
      #923896 Dana 18/ Dana 20/ Dana 300 front & rear output seal (double lipped premium)
      In master rebuild kit
      $26.95
    6. Brake operating lever stud
      #1309-146-001 Stud, brake, T18
      Call to order
    7. Rear bearing cap — billet replacement
      #K-C18-19-31 Dana 18 Tailhousing Billet Rear Bearing Cap Assembly
      Novak upgrade
      Not for the parking-brake version
      $269.00
    8. Rear bearing cap shim pack
      #A6753-N Dana 18/20 Rear Bearing Shim Pack (Novak Made)
      In master rebuild kit
      $20.95
    9. Bolt, 3/8-16 x 1"
      Not sold separately
    10. Lock washer, 3/8"
      Not sold separately
    11. Bolt, 3/8-16 x 3/4"
      Not sold separately
    12. Rear (PTO) cover — billet
      #F-PTO18 Dana 18 PTO Port Cover, Aluminum, Black Anodized
      Novak upgrade
      $55.00
    13. Rear cover gasket
      #T9-150 Gasket, PTO cover, six bolt
      In master rebuild kit
      Also in the 10149 gasket set
      Call to order
    14. Intermediate shaft lock plate
      #JA001001 Dana 18/Dana 20/Dana 300 Intermediate Shaft Retainer Plate
      In master rebuild kit
      $2.19
    15. Transfer case housing
      Not sold separately
    16. Shift rail, high/low range
      #18-67-5 Dana 18 High/Low Shift Rail
      Backordered until Oct 21
      $95.00
    17. Poppet plug
      #942385 Dana 20/ Dana 300 Transfer Case Shifter Poppet Ball Plug Screw (Aluminum)
      $2.21
    18. Poppet spring
      #A966 Dana 18/ Dana 20 Shifter Poppet Springs
      In master rebuild kit
      $4.24
    19. Poppet ball
      #38G25 Detent Poppet Ball, 0.375"
      In master rebuild kit
      $0.89
    20. Shift rail interlock
      Not sold separately
    21. Front bearing cap gasket
      #10149 Dana 18/Dana 20 Transfer Case Gasket Set (Premium)
      In master rebuild kit
      Sold in the 10149 gasket set
      $35.95
    22. Front bearing cap
      Not sold separately
    23. Breather vent — updated bronze-mesh design
      #A-934 Vent, breather, Dana 18 transfer case, updated bronze mesh design
      Novak upgrade
      $13.09
    24. Shift rail oil seal, double-lip
      #A974 Dana 18/Dana 20/ Dana 300 Shift Rod Oil Seal (premium double lipped)
      In master rebuild kit
      $9.95
    25. Front output yoke, 10-spline 1310
      #933734 Dana 18/Dana 20 U-joint yoke 10 Spline 1310
      $98.25
    26. Front output seal, double-lip
      #923896 Dana 18/ Dana 20/ Dana 300 front & rear output seal (double lipped premium)
      In master rebuild kit
      $26.95
    27. Bolt
      Not sold separately
    28. Lock washer
      Not sold separately
    29. Shift rail, 2WD/4WD
      #18-67-2 Dana 18 2WD/4WD Shift Rail
      Backordered until Oct 21
      $82.00
    30. Shift fork, front-wheel drive
      #A960 Fork, shifter, front wheel drive, Dana 18 transfer case
      Call to order
    31. Shift fork, range (underdrive & direct)
      #A959 Fork, shifter, range, Dana 18 transfer case
      Call to order
    32. Fill plug
      Not sold separately
    33. Input gear, 29-tooth
      #809297 Dana 18 Input Gear, L29-S15T x 6 Spline, 20° Helix
      L29-S15T x 6-spline
      $114.00
    34. Input gear, 26-tooth
      #937339 Dana 18/20 Input Gear, L26-S15T x 6 Spline, 20° Helix
      L26-S15T x 6-spline
      $135.75
    35. Input gear washer, 7/8"
      #A1410 Flat Washer, 7/8", Dana 18/20
      In master rebuild kit
      $4.00
    36. Intermediate gear thrust washer, 3/4" shaft
      #A1000 Washer, thrust, 3/4”, intermediate shaft, Dana 18 transfer case, 2 required
      In master rebuild kit
      2 required
      Call to order
    37. Intermediate gear thrust washer, 1-1/8" shaft
      #642191 Washer, thrust, 1-1/8” intermediate shaft, Dana 18 transfer case, 2 required
      In master rebuild kit
      2 required
      Call to order
    38. Intermediate gear thrust washer, 1-1/4" shaft
      #809296 Dana 18 thrust washer 1-1/4" intermediate shaft
      In master rebuild kit
      2 required
      $3.39
    39. Intermediate gear, 39-tooth
      #809293 Dana 18 Intermediate Gear, R39-S18, 20° Helix
      R39-S18
      $140.75
    40. Intermediate gear, 34-tooth
      #642189 Dana 18 Intermediate Gear, R34-S21, 20° Helix
      Backordered until Oct 30
      R34-S21
      $182.75
    41. Front output bearing snap ring
      #A976 Ring, snap, retaining, Dana 18 front output deep ball roller to housing
      In master rebuild kit
      $4.31
    42. Front output shaft bearing
      #A1007 Dana 18/Dana 20 Front Output & NP231/NP207 Front/Rear Output Bearing
      In master rebuild kit
      $11.95
    43. Yoke nut, nylock
      #801367 Dana 18/Dana 20/Dana 300 yoke lock nut
      In master rebuild kit
      $5.74
    44. Yoke nut, castellated (original style)
      #8130364 Dana 18/20 Yoke Nut, Castellated (3/4"-20)
      $10.95
    45. Yoke washer
      #A1028 Dana 18/Dana 20/Dana 300 yoke washer
      In master rebuild kit
      $4.29
    46. Front output (clutch) shaft
      #807892 Dana 18 Front Output Shaft
      Call to order
    47. Front output clutch gear
      Not sold separately
    48. Front output shaft snap ring
      #A991 Dana 18 Front Output Shaft Snap Ring
      In master rebuild kit
      $3.06
    49. Output shaft thrust washer
      #A990-N Dana 18 Output Shaft Thrust Washer
      In master rebuild kit
      $8.00
    50. Front output gear, 29-tooth
      #809291 Dana 18 Front Output Gear, L29-S12T, 20° Helix
      L29-S12T
      $97.75
    51. Front output gear, 26-tooth
      #A15044 Dana 18/Dana 20 Front Output Gear, L26-S12T, 20° Helix
      L26-S12T
      $98.75
    52. Output shaft sliding gear, 33-tooth
      #809290 Dana 18 Front Output Sliding Gear, S33 x 12 Spline
      S33 x 12-spline
      $117.75
    53. Output shaft sliding gear, 39-tooth
      #A15045 Dana 18 Front Output Sliding Gear, S39 x 12 Spline
      S39 x 12-spline
      $135.75
    54. Output shaft pilot bushing
      #A987 Dana 18 Output Shaft Bushing
      In master rebuild kit
      $29.95
    55. Rear output shaft, 10-spline
      #807767 Dana 18 Rear Output Shaft (10 Spline)
      $159.25
    56. Rear output tapered roller bearing
      #51575 Dana 18 Output Shaft Tapered Roller Bearing
      In master rebuild kit
      $15.95
    57. Rear output bearing cup
      #52883 Dana 18/Dana 20 Front Output Bearing Cup
      In master rebuild kit
      $13.95
    58. Speedometer drive gear
      Not sold separately
    59. Intermediate needle bearings, 3/4" shaft
      #A924 Dana 18 Intermediate Shaft Caged Needle Bearings, 3/4"
      In master rebuild kit
      $26.95
    60. Intermediate needle bearings, 1-1/8" shaft
      #642190 Dana 18 Intermediate Shaft Caged Needle Bearings, 1-1/8"
      In master rebuild kit
      $16.95
    61. Intermediate needle rollers, 1-1/4" shaft
      #809294 Bearings, loose needle rollers, Dana 18 & 20 transfer cases intermediate shaft, 1-1/4”
      In master rebuild kit
      Loose rollers
      Call to order
    62. Intermediate bearing spacer, 1-1/4" shaft
      #809295 Dana 18/Dana 20/Dana 300 Intermediate Shaft Bearing Spacer, 1-1/4", (3 Required)
      In master rebuild kit
      3 required
      $3.67
    63. Intermediate shaft, 3/4" — Novak hardened
      #A998 Dana 18 Intermediate Gear Idler Shaft, 3/4" (Premium Hardened)
      In master rebuild kitNovak upgrade
      $103.00
    64. Intermediate shaft, 1-1/8" — Novak hardened
      #642188 Dana 18 Intermediate Gear Idler Shaft, 1-1/8" (Premium Hardened)
      In master rebuild kitNovak upgrade
      $103.00
    65. Intermediate shaft, 1-1/4" — Novak hardened
      #942115 Dana 18/Dana 20/Dana 300 Transfer Case Intermediate Gear Idler Shaft, 1-1/4" (Premium Hardened)
      In master rebuild kitNovak upgrade
      $113.50
    66. Drain plug
      #090-005 Drain Plug, 1/2-20, 7/8" Hex, w/ Gasket
      $4.37
    67. Bottom cover (pan) gasket
      #A954 Jeep/IH Dana 18/Dana 20/Dana 300 Transfer Case Pan Gasket
      In master rebuild kit
      $5.00
    68. Input gear nut, nylock
      #940970 Jeep/Dana Mainshaft Nut, Nylock (7/8"-16)
      In master rebuild kit
      $4.79
    69. Bottom cover (pan) — billet, deep
      #D328-D Jeep Dana 18, 20, or 300 Transfer Case Billet Bottom Cover Pan, Deep
      Novak upgrade
      Holds 16 oz more fluid
      $198.00
    70. Speedometer driven gear sleeve
      Not sold separately
    71. Speedometer driven gear
      Not sold separately
    72. Speedometer driven gear bushing
      Not sold separately
    73. Rear output gasket
      #10149 Dana 18/Dana 20 Transfer Case Gasket Set (Premium)
      In master rebuild kit
      Sold in the 10149 gasket set
      $35.95
    74. Bolt
      Not sold separately
    75. Bottom cover bolt, stainless button head
      #92949A581 Bolt, 5/16-18 x 3/4, hex socket, button head, stainless
      Call to order
    76. Bolt
      Not sold separately
    77. Bolt
      Not sold separately
    78. Lock washer
      Not sold separately
    79. Nut
      Not sold separately
    80. Felt yoke washer
      #932295 Felt Output Yoke Washer, Dana 18/20
      $3.99

    Also for the Dana 18 — not pictured

    1. Gasket set (premium)
      #10149 Dana 18/Dana 20 Transfer Case Gasket Set (Premium)
      In master rebuild kit
      $35.95
    2. Gasket, seal & shim pack set
      #GS18 Dana 18/Dana 20 Transfer Case Gasket, Seal & Shim Pack
      $119.00
    3. Intermediate shaft kit, 3/4"
      #TCM Dana 18 Transfer Case Intermediate Shaft Kit 3/4"
      Novak upgrade
      $170.00
    4. Intermediate shaft kit, 1-1/8"
      #TCE Dana 18 Transfer Case Intermediate Shaft kit 1-1/8"
      Novak upgrade
      $170.00
    5. Intermediate shaft kit, 1-1/4"
      #TCL Dana Transfer Case Intermediate Shaft Kit 1-1/4"
      Novak upgrade
      $159.50
    6. Shifter pivot pin with grease zerk
      #A972 Dana 18 Transfer Case Shifter Pivot Pin with Grease zerk
      In master rebuild kit
      $4.79
    7. Shifter pivot grease zerk
      #1105K71 Dana 18 Shift Pin Grease Zerk
      In master rebuild kit
      $1.13
    8. Shift lever spring
      #801332 Dana 18 & 20 Transfer Case Shift Lever Spring
      $1.43
    9. Shifter cane, range
      #801330 Transfer Case Shifter Cane, Dana 18 Range
      $48.95

    Full Master Rebuilt Transfer Case

    Dana Model 18 Transfer Case

    Our Dana 18 is professionally and meticulously rebuilt. We use the best components, including bearings, bushings, seals and gaskets built by our Dana 18 specialists and experts. All known updates and improvements are performed. Put the experience of thousands of Dana transfer case rebuilds to work for your Jeep.

    Because of the variations involved and shipping options available, we encourage you to contact us directly by phone or e-mail. We will help you put together the transfer case which best fits your requirements.

    Note that we can supply a core Dana 18 or we can arrange to have yours sent in with a core credit of $400. Transfer cases are built to order and typically take 1-3 weeks to ship. Contact us for current build times. Costs range from $1,667. to $1,795. depending on your configuration, ranging from standard versions without emergency brake to "Super 18" (Dana 18 with a Dana 20 case) with emergency brake, etc.

    Logistics

    your transfer case package is palleted and wrapped (if trucking is required) or packaged in a double-wall box (if by parcel), fully insured and ready to bolt into your application. Novak will seek the best competitive shipping rates with our extensive trucking networks. It will arrive at a location of your choosing, though we strongly recommend a business location with a dock / forklift for delivery (if trucking), as residential and liftgate fees can add up to an extra $100. per delivery.

    Also See
