    Parts for the
    SM465 Transmission

    Looking for a complete SM465? Click here. Shop individual SM465 parts on the exploded diagramClick any number on the diagram to find that part · 63 parts available online
    Kit 465MR-1, master rebuild, SM465 transmissions, 1968-1987 versions

    465MR-1;465MR-2

    The SM465 is arguably one of the greatest four-speed transmissions ever built, and reconditioning one is a worthwhile project.

    The Kit

    Our master rebuild kit has been assembled for our customer's rebuilds as well as our own. It is the most complete kit we've seen anywhere and features all the consumable and wear item components for both the main case and top cover shift rails.

    Our kit standardizes the SM465 thrust washer and endplay and we recommend that you use the supplied shaft bushings with the supplied thrust washer for simplicity.

    There are two versions of our rebuild kit, each compatible with all 2wd, 4wd and conversion 465's:

    Quality you can count on.

    Our master rebuild kits have been assembled for our customer's rebuilds as well as the thousands of rebuilds we do at Novak. It is the most complete kit we've seen anywhere and features all the consumable and wear item components. Cut-rate "BK" basic kits seen on the market don't hold a candle to the Novak kits' quality and completeness.

    These rebuild kits set the industry standard for reliability, using only premium bearings and seals from proven manufacturers like Timken, JTEKT, Nachi, CR Seals, and more. No single brand makes every part we require, so we hand-select each component to ensure unrivaled performance and longevity.

    Novak kits include:

    Rebuild Requirements

    It is common for our customers to do top-level rebuild work, using good methods and by following our included instruction guide.

    We suggest the rebuilder have access to a set of snap ring pliers, a bearing puller and a hydraulic press.

    Related Products


    Billet PTO Cover

    Billet PTO Cover, 6-Bolt

    This is the rigid PTO cover that every Novak-built transmission gets, and we recommend them to our customers. They seal better and stay that way for far longer than the stamped steel versions from the factory. Stainless button-head fasteners are included.

    K-PTO
    Pre-1976 SM465 4wd transmission mainshaft lock nut

    SM465 Transmission Mainshaft Lock Nut, 4WD, Pre-1979

    This is the mainshaft nut for pre-1979 SM465 transmissions. Alternate part numbers: WT304-90A

    12388448
    Shifter Retention Kit, SM420, SM465, T176, NP435

    SM420/SM465/NP435/T176 Shifter tower retention rebuild Kit

    This shifter retention kit and mini-boot will lock in your shifter stick and give it a better barrier than factory from dust and water ingress.

    SLR-176K
    T18 Shifter Stick

    SM420/SM465 Shifter Cane, 18", Cast iron lids only

    Worn out shifter sticks or factory shifter sticks that are wierdly bent for Jeeps or a stick that's missing altogether... Replace it with the new, straight version that is a more appropriate length for a Jeep and ready to take an industry standard knob.

    WT304-28-18
    T18 Shifter Stick

    SM420/SM465 Shifter Cane, 24", Cast iron lids only

    Worn out shifter sticks or factory shifter sticks that are wierdly bent for Jeeps or a stick that's missing altogether... Replace it with the new, straight version that is a more appropriate length for a Jeep and ready to take an industry standard knob.

    WT304-28-24
    New Process 435 Gaskets Kit

    SM465 Transmission Gasket Set

    This is the gasket kit to seal up your SM465. This is included with our master rebuild kit, adjacent.

    WT304-55
    SM465 mainshaft journal bushing kit

    SM465 Mainshaft Journal Bushing Set (1st/2nd/3rd)

    If purchasing the mainshaft version of the Novak adapter kit, these bushings are required. Note that these also come in our master rebuild kit (adjacent). If purchased at the same time as the adapter kit, we will press one of the bushings on the mainshaft for you - the other two must be installed with your gears due to sequencing.

    B465
    WT304 11AX SM465 update kit

    SM465 3rd Gear & Slider Update Kit (TorqueLock/Anti-Jump-Out)

    The SM465 is pretty close to perfect in its design, but this update to 3rd gear and its slider are considered to be essential. The tapered clutch design prevents 3rd gear from kicking out under torque. This and other components can be seen here.

    WT304-11AX
    SM465 Countershaft Billet Front Cover

    SM465 Front Countershaft Cover

    This billet aluminum front bearing cap for your SM465 countershaft is far more rigid than the stamped steel, leakage-prone factory unit. It comes with countersunk fasteners.

    465CSC
    Transmission assembly, TurnKey, SM465 manual. Master rebuilt, fully updated and tested. Configuration as specified

    Turn-Key SM465 Transmission

    Let us put a meticulously remanufactured and updated SM465 on your doorstep, configured exactly how you want it for your project, with the appropriate adapter (or factory tailhousing), bellhousing preparation, etc. Read more.

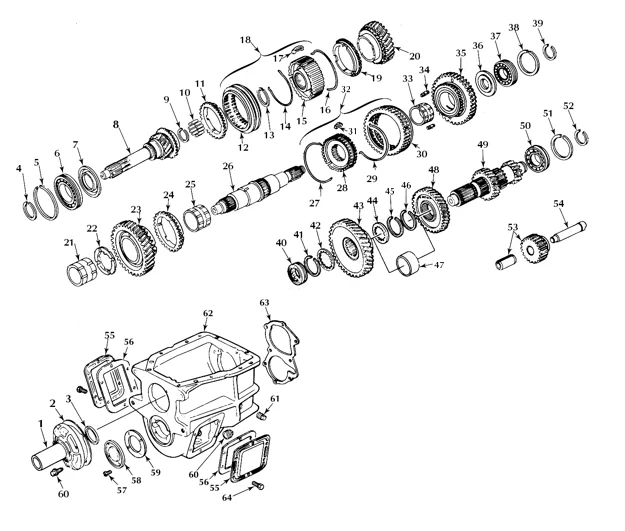

    SM465 Exploded Parts Diagram

    Click a number on the diagram to find that part, or search the list. 63 of the 78 parts listed can be ordered online — for anything else call 877-602-1500.

    1988–91 SM465s use a wider front input bearing and a different countershaft front bearing — noted on those parts.

    SM465 Transmission exploded diagram
    Pinch or use + to zoom
    Available onlineCall to order / not sold separately
    1. Front input bearing retainer
      #3901178 SM465 Front Input Bearing Retainer (5-1/8" Register, 1-1/8" Input)
      5-1/8" register, 1-1/8" input · *Includes seal*
      $24.95
    2. Front bearing retainer gasket
      #304-55R SM465 Input Bearing Retainer Gasket, 0.060" Thick
      In master rebuild kit
      0.060" thick
      $1.73
    3. Gasket set
      #WT304-55 SM465 Transmission Gasket Set
      In master rebuild kit
      $16.95
    4. Front input seal
      #481181N SM465 Front Input Seal
      In master rebuild kit
      $17.95
    5. Input shaft to bearing retaining ring

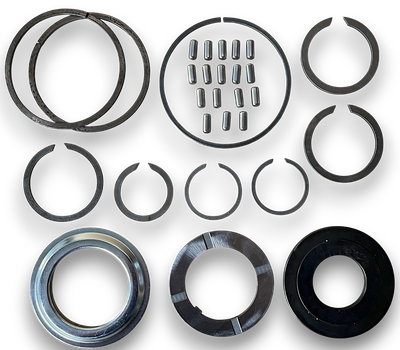

      #SP304-50A SM465 Small Parts Kit
      In master rebuild kit
      Sold in the SM465 small parts kit
      $42.00
    6. Input bearing to case retaining ring
      #SP304-50A SM465 Small Parts Kit
      In master rebuild kit
      Sold in the SM465 small parts kit
      $42.00

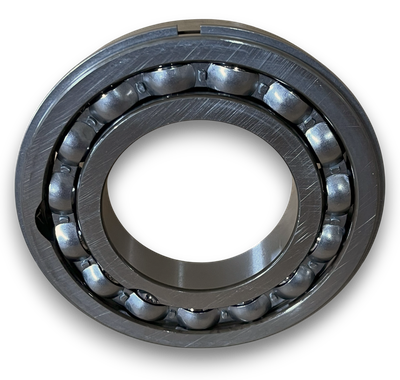

    7. Front input bearing, 1968–90 (0.68" wide)
      #907993 SM465 Front Input Ball Bearing, 1968-1990, 0.68" Wide (Incl. Snap Ring)
      In master rebuild kit
      $46.95
    8. Front input bearing, 1988–91 (0.83" wide)
      #6211NR SM465 Front Input Ball Bearing, 1988-1991, 0.83" Wide (Incl. Snap Ring)
      In master rebuild kit
      $65.50
    9. Front input oil slinger
      #SP304-50A SM465 Small Parts Kit
      In master rebuild kit
      Sold in the SM465 small parts kit
      $42.00
    10. Input shaft, 1-1/8" x 10-spline, 9.63" (1968–90)
      #WT304-16A SM465 Input Shaft, 1-1/8" x 10 Spline x 9.63" OAL (1968-1990)
      $114.00
    11. Input shaft, 1-1/2" x 10-spline, 10.69" (1988–91)
      #WT304-16B Shaft, input, SM465 transmission, 1-1/2” x 10 splines x 10.69” OAL, 1988-1991, HD version with wide .83” bearing. L17-S26(33)T
      Call to order
    12. Input shaft, 1-1/8" x 10-spline, 9.63"
      #WT304-16C Shaft, input, SM465 transmission, 1-1/8” x 10 splines x 9.63” OAL, some 1988-1991 with wide .83” bea
      Call to order
    13. Pilot roller clip
      #SP304-50A SM465 Small Parts Kit
      In master rebuild kit
      Sold in the SM465 small parts kit
      $42.00
    14. Mainshaft pilot needle rollers
      #SP304-50A SM465 Small Parts Kit
      In master rebuild kit
      Sold in the SM465 small parts kit
      $42.00
    15. Synchronizer ring, 3rd/4th
      #WT304-14A SM465 3rd-4th Synchronizer Ring
      In master rebuild kit
      $19.95
    16. Synchronizer slider, 3rd/4th — updated Torque-Lock
      #WT304-15 SM465 3rd-4th Synchronizer Clutch Slider (Updated Torque-Lock)
      Novak upgrade
      $50.50
    17. Pilot roller clip
      #SP304-50A SM465 Small Parts Kit
      In master rebuild kit
      Sold in the SM465 small parts kit
      $42.00
    18. Synchronizer spring, 3rd/4th
      #WT304-K3 SM465 3rd/4th Synchronizer Keys & Springs Kit
      In master rebuild kit
      Keys & springs kit
      $12.95
    19. Synchronizer hub, 3rd/4th
      #WT304-2.5 SM465 3rd/4th Synchronizer Hub (S33-S33T)
      S33-S33T
      $50.50
    20. Synchronizer spring, 3rd/4th
      #WT304-K3 SM465 3rd/4th Synchronizer Keys & Springs Kit
      In master rebuild kit
      Keys & springs kit
      $12.95
    21. Synchronizer keys, 3rd/4th
      #WT304-K3 SM465 3rd/4th Synchronizer Keys & Springs Kit
      In master rebuild kit
      Keys & springs kit
      $12.95
    22. Synchronizer assembly, 3rd/4th
      #AWT304-2.5 Assembly, synchronizer, 3rd – 4th, SM465 transmission. Includes hub, slider, synchro rings, keys & springs
      Call to order
    23. Synchronizer ring, 3rd/4th
      #WT304-14A SM465 3rd-4th Synchronizer Ring
      In master rebuild kit
      $19.95
    24. 3rd gear
      #WT304-11 SM465 3rd Gear, L26-S33T
      L26-S33T
      $38.95
    25. 3rd gear & slider update kit (anti-jump-out)
      #WT304-11AX SM465 3rd Gear & Slider Update Kit (TorqueLock/Anti-Jump-Out)
      Novak upgrade
      $134.00
    26. Mainshaft journal bushing, 3rd gear
      #WT304-19A SM465 Mainshaft Journal Bushing, 3rd Gear (1968-1991)
      In master rebuild kit
      $19.00
    27. Thrust washer
      #SP304-50A SM465 Small Parts Kit
      In master rebuild kit
      Sold in the SM465 small parts kit
      $42.00
    28. 2nd gear
      #WT304-21 SM465 2nd Gear, L35-S36T
      L35-S36T
      $95.25
    29. Synchronizer ring, 1st/2nd
      #WT304-83A SM465 1st-2nd Synchronizer Ring
      In master rebuild kit
      $26.95
    30. Mainshaft journal bushing, 2nd gear
      #WT304-19 SM465 Mainshaft Journal Bushing, 1st Gear (1968-1977) & 2nd Gear (All)
      In master rebuild kit
      $19.00
    31. Mainshaft, 2WD (Novak made)
      #WT304-2A Main Shaft SM465 transmission, S33-46-35 spline, 2wd, 1968-1991. 15.69” OAL Novak Made
      Call to order
    32. Mainshaft, 4WD 1968–83 (NP205)
      #WT304-2C SM465 Main Shaft, 4WD (1968-1983), NP205
      $165.50
    33. Mainshaft, 4WD 19.63" (good used)
      #WT304-2D-U SM465 Main Shaft, 4WD, 19.63" OAL (Good Used)
      Call to order
    34. Synchronizer spring, 1st/2nd
      #WT304-K1 SM465 1st/2nd Synchronizer Keys & Springs Kit
      In master rebuild kit
      Keys & springs kit
      $9.24
    35. Synchronizer hub, 1st/2nd
      #WT304-81 SM465 1st/2nd Synchronizer Hub
      $91.75
    36. Synchronizer spring, 1st/2nd
      #WT304-K1 SM465 1st/2nd Synchronizer Keys & Springs Kit
      In master rebuild kit
      Keys & springs kit
      $9.24
    37. Reverse sliding clutch gear
      #WT304-36 SM465 Reverse Sliding Clutch Gear, S44-S36T
      S44-S36T
      $136.00
    38. Synchronizer keys, 1st/2nd
      #WT304-K1 SM465 1st/2nd Synchronizer Keys & Springs Kit
      In master rebuild kit
      Keys & springs kit
      $9.24
    39. Synchronizer assembly, 1st/2nd
      #AWT304-80 SM465 1st-2nd Synchronizer Assembly, Includes hub, slider, synchro rings, keys & springs
      Hub, slider, rings, keys & springs
      $259.00
    40. Mainshaft journal bushing, 1st gear (1968–77)
      #WT304-19 SM465 Mainshaft Journal Bushing, 1st Gear (1968-1977) & 2nd Gear (All)
      In master rebuild kit
      $19.00
    41. Mainshaft journal bushing, 1st gear (1978–91)
      #WT304-19B SM465 Mainshaft Journal Bushing, 1st Gear (1978-1991)
      $13.95
    42. 1st gear pins
      Not sold separately
    43. 1st gear
      #WT304-12 SM465 1st Gear, L39-S36T
      L39-S36T
      $104.75
    44. Thrust washer, improved
      #SP304-50A SM465 Small Parts Kit
      In master rebuild kit
      Sold in the SM465 small parts kit
      $42.00
    45. Rear output bearing
      #6308N T18/NP435/SM465 Rear Ball Bearing w/ Retaining Ring Groove
      In master rebuild kit
      $28.95
    46. Rear bearing to case retaining ring
      Not sold separately
    47. Mainshaft to rear bearing retaining ring
      #SP304-50A SM465 Small Parts Kit
      In master rebuild kit
      Sold in the SM465 small parts kit
      $42.00
    48. Countershaft front roller bearing, 1968–87
      #5707 SM465 Front Countershaft Cylindrical Roller Bearing, 1968-1987
      In master rebuild kit
      $20.95
    49. Countershaft front roller bearing, 1988–91
      #M1305GGTV SM465 Front Countershaft Cylindrical Roller Bearing, 1988-1991
      In master rebuild kit
      $36.95
    50. Countershaft front bearing retaining ring
      #SP304-50A SM465 Small Parts Kit
      In master rebuild kit
      Sold in the SM465 small parts kit
      $42.00
    51. Countershaft front spacer washer
      Not sold separately
    52. Countershaft drive gear
      Not sold separately
    53. Countershaft spacing washer
      #SP304-50A SM465 Small Parts Kit
      In master rebuild kit
      Replaced by #47 on later units
      $42.00
    54. Countershaft spacing retaining ring
      #SP304-50A SM465 Small Parts Kit
      In master rebuild kit
      Replaced by #47 on later units
      $42.00
    55. Countershaft spacing retaining ring
      #SP304-50A SM465 Small Parts Kit
      In master rebuild kit
      Replaced by #47 on later units
      $42.00
    56. Countershaft spacer — updated, replaces 44–46
      #WT304-91-N SM465 Countershaft Bushing Spacer, Updated Snap Ring Replacement
      In master rebuild kitNovak upgrade
      $39.95
    57. Countershaft 3rd gear
      #WT304-34 Gear, 3rd, countershaft, SM465 transmission. R36-S44T
      R36-S44T
      Call to order
    58. Countershaft
      Not sold separately
    59. Countershaft rear bearing
      #6308N T18/NP435/SM465 Rear Ball Bearing w/ Retaining Ring Groove
      In master rebuild kit
      $28.95
    60. Countershaft rear bearing to case retaining ring
      Not sold separately
    61. Countershaft rear bearing to shaft retaining ring
      #SP304-50A SM465 Small Parts Kit
      In master rebuild kit
      Sold in the SM465 small parts kit
      $42.00
    62. Reverse idler gear with bushing
      #AWT304-10 SM465 Reverse Idler Gear, S23T (Incl. Bushing)
      S23T
      $74.00
    63. Reverse idler shaft (Novak made)
      #3901144-N SM465 Reverse Idler Shaft (Novak Made)
      Novak upgrade
      $103.75
    64. PTO port cover — billet
      #K-PTO Billet PTO Cover, 6-Bolt
      Novak upgrade
      $39.95
    65. PTO port cover gasket
      #T9-150 Gasket, PTO cover, six bolt
      Call to order
    66. Countershaft front cover plate screw
      Not sold separately
    67. Countershaft front cover plate
      #465CSC SM465 Front Countershaft Cover
      $51.00
    68. Countershaft front cover gasket
      #WT304-55 SM465 Transmission Gasket Set
      In master rebuild kit
      Sold in the SM465 gasket set
      $16.95
    69. Drain plug, 1/2" square head
      #PP627-100 Transmission Drain Pipe Plug, 1/2" Square Head
      $2.35
    70. Fill plug, 1/2" square head
      #PP627-100 Transmission Drain Pipe Plug, 1/2" Square Head
      $2.35
    71. Top cover gasket
      #WT304-55 SM465 Transmission Gasket Set
      In master rebuild kit
      Sold in the SM465 gasket set
      $16.95
    72. Rear housing to case gasket
      #10148 SM465 Transmission Rear Output Housing Gasket
      In master rebuild kit
      $6.30
    73. PTO cover bolt
      Not sold separately

    Also for the SM465 — not pictured

    1. Rear output seal, 2WD
      #15595878 SM465 2WD Rear Output Oil Seal
      In master rebuild kit
      $19.95
    2. Small parts kit
      #SP304-50A SM465 Small Parts Kit
      In master rebuild kit
      $42.00
    3. Mainshaft journal bushing set (1st/2nd/3rd)
      #B465 SM465 Mainshaft Journal Bushing Set (1st/2nd/3rd)
      $47.25
    4. Lid (shift cover) rebuild kit
      #SP304-50YN SM465 Lid Rebuild Kit
      In master rebuild kit
      $39.00
    5. Shifter tower retention rebuild kit
      #SLR-176K SM420/SM465/NP435/T176 Shifter tower retention rebuild Kit
      $23.95

    Essentially all parts for the SM465, including gears, shafts, factory adapters & tailhousings, retainers, etc. are available new and affordably so. For anything not shown, contact us.

    Also See
