Dana Model 20 Transfer Case

Name: Dana 18 & 20 Transfer Case Shift Lever Spring
Brand: Novak
SKU: 801332
Price: 1.43 USD
Availability: InStock

Shop individual Dana 20 parts on the exploded diagramClick any number on the diagram to find that part · 58 parts available online Dana Model 20 Transfer Case

The Jeep & IH Dana Spicer 20 is still one of the most respected transfer cases on the trail. Professional level repair, assembly and upgrade work is possible for the conscientious shade tree builder.

In addition to our master rebuild kits, we offer nearly all parts at the component level, as well as several upgrade part options.

These kits fit all Jeep Dana 20 Transfer cases and most IH Dana 20 transfer cases.

The Master Rebuild Kit

Our master rebuild kit has been assembled for our customer's rebuilds as well as our own. It is the most complete kit we've seen anywhere and features all the consumable and wear item components. This kit includes:

20MR

Right Stuff Gasket Maker Valvoline 80W-90 GL-5 Gear Oil, 1 qt 2 qt fill Dana 20 billet front output bearing cap

This kit includes:

World class bearings
Novak's premium hardened intermediate shaft with sealing o-rings
Premium bearings (deep ball, tapered rollers, races, needles)
High-grade seals
Shim pack
Shift springs
Poppet balls
Premium gaskets (including rubberized cork pan gasket)
O-rings (+ spares)
Shift rail thimble covers
Poppet plugs
Expansion plugs
Yoke nuts & washers
Intermediate shaft retainer plate
Novak's comprehensive rebuild guide
Customer access to Novak's experienced Dana transfer case experts

Our exclusive intermediate shafts are made at Novak from an alloy gear steel and case-hardened to exceptional hardness and have o-ring grooves at both ends, assuring a better seal than factory; extra o-rings are also included.

Installation Requirements

It is very common for our customers to do top-level rebuild work, using good methods and by following our included instruction guide. We suggest the rebuilder have access to a set of snap ring pliers, and a small arbor press, in addition to standard shop tools. The full rebuild procedure is covered here.

The Intermediate Shaft Kits

These kits are a reduced version of our Master Kits. They contain the specially hardened intermediate shaft, O-rings, thrust washers, bearings and snap ring.

Kit TCL, intermediate shaft, Dana 1-1/4" transfer cases

TCL

Valvoline 80W-90 GL-5 Gear Oil, 1 qt 2 qt fill

Dana 20 Billet Bottom Cover Pan

This extended capacity, anodized billet aluminum bottom pan solves a few Dana transfer case dilemmas:

Thick, machined mating flange replaces the dimpled, warped sheet metal original
Drip free sealing surface with the use of RTV or RTV + gasket
Increased fluid capacity by 16 oz
Adds rigidity to the structure of the transfer case
Superior heat shedding

Included are the stainless socket head button cap screws, drain plug and sealing washer. Read the review at 4x4review.com

D328-D

Valvoline 80W-90 GL-5 Gear Oil, 1 qt 3 qt fill

Dana 20 Gaskets & Seals Set

There's not a better gaskets and seals kit available. The pan gasket itself (otherwise the most prone to leaking) is cut from a rubber-cork compound.

GS18

Valvoline 80W-90 GL-5 Gear Oil, 1 qt 2 qt fill Right Stuff Gasket Maker

Dana 20 front output rear bearing billet cap upgrade

Seal up and shim you front output shaft rear bearing from the inside with this innovative bearing cap assembly. The anodized cap, shims and o-ring sealed bolts are included.

Kit, Dana 20 front output rear rearing billet cap

933725-K

Valvoline 80W-90 GL-5 Gear Oil, 1 qt 2 qt fill

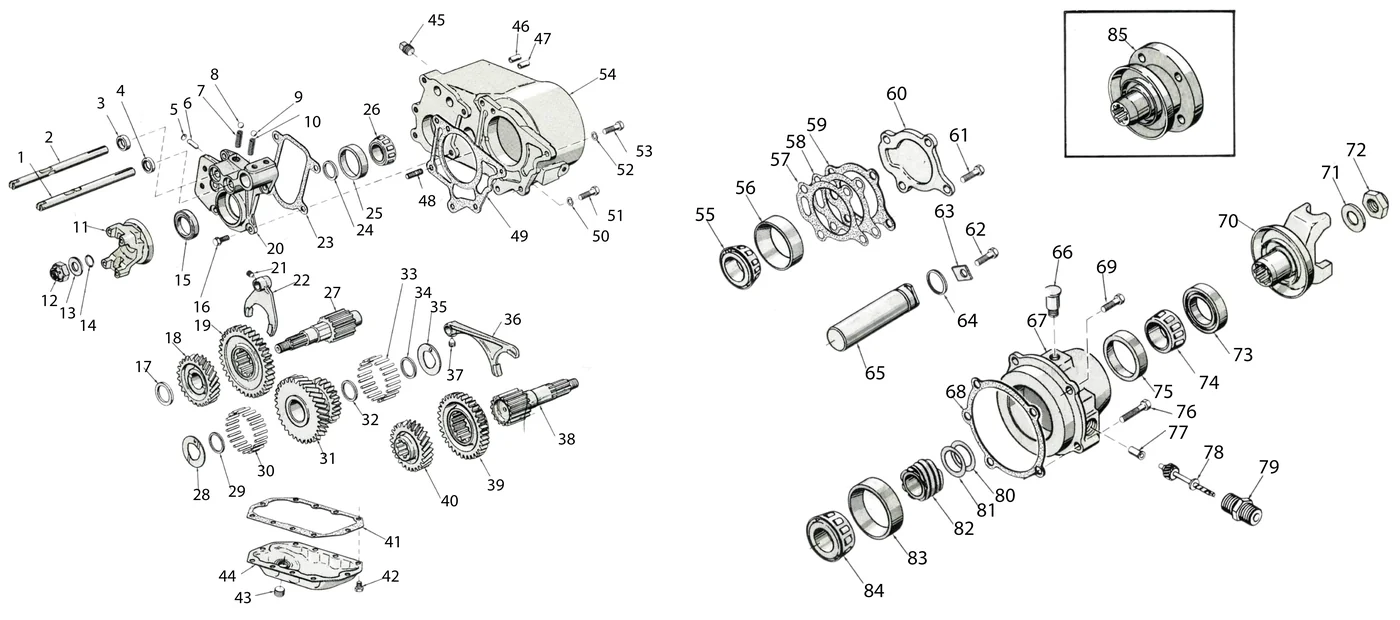

Dana 20 Exploded Parts Diagram

Click a number on the diagram to find that part, or search the list. 58 of the 98 parts listed can be ordered online — for anything else call 877-602-1500.

Pinch or use + to zoom

Available onlineCall to order / not sold separately

Shift rail, front-wheel drive
Not sold separately
Shift rail, range
Not sold separately
Shift rail oil seal, double-lip
#A974 Dana 18/Dana 20/ Dana 300 Shift Rod Oil Seal (premium double lipped)
In master rebuild kit
$9.95
Shift rail oil seal, double-lip
#A974 Dana 18/Dana 20/ Dana 300 Shift Rod Oil Seal (premium double lipped)
In master rebuild kit
$9.95
Expansion cup plug
#555-003 Expansion Cup Plug, 7/16" OD x 0.250" Height
In master rebuild kit
Call to order
Shift rail interlock pin
Not sold separately
Poppet spring
#A966 Dana 18/ Dana 20 Shifter Poppet Springs
In master rebuild kit
$4.24
Poppet ball
#38G25 Detent Poppet Ball, 0.375"
In master rebuild kit
$0.89
Poppet ball
#38G25 Detent Poppet Ball, 0.375"
In master rebuild kit
$0.89
Poppet spring
#A966 Dana 18/ Dana 20 Shifter Poppet Springs
In master rebuild kit
$4.24
Front output yoke, 10-spline 1310
#933734 Dana 18/Dana 20 U-joint yoke 10 Spline 1310
$98.25
Front output yoke, 26-spline 1310
#935685 Dana 20 U-joint yoke 26 spline 1310
$66.00
Yoke nut, nylock
#801367 Dana 18/Dana 20/Dana 300 yoke lock nut
In master rebuild kit
$5.74
Yoke nut, castellated (original style)
#8130364 Dana 18/20 Yoke Nut, Castellated (3/4"-20)
$10.95
Yoke washer
#A1028 Dana 18/Dana 20/Dana 300 yoke washer
In master rebuild kit
$4.29
Felt yoke washer
#932295 Felt Output Yoke Washer, Dana 18/20
$3.99
Front output seal, double-lip
#923896 Dana 18/ Dana 20/ Dana 300 front & rear output seal (double lipped premium)
In master rebuild kit
$26.95
Bolt
Not sold separately
Front output thrust washer
Not sold separately
Front output gear, 26-tooth
#A15044 Dana 18/Dana 20 Front Output Gear, L26-S12T, 20° Helix
L26-S12T
$98.75
Front output sliding gear
Not sold separately
Front output bearing cap
Not sold separately
Set screw
Not sold separately
Shift fork, front-wheel drive
Not sold separately
Front output housing gasket
#10149 Dana 18/Dana 20 Transfer Case Gasket Set (Premium)
In master rebuild kit
Sold in the 10149 gasket set
$35.95
Thrust washer
Not sold separately
Front output bearing cup
#52883 Dana 18/Dana 20 Front Output Bearing Cup
In master rebuild kit
$13.95
Front output tapered roller bearing
#942113 Dana 20 Front Output Shaft Tapered Roller Bearing
In master rebuild kit
$25.95
Front output shaft
Not sold separately
Intermediate gear thrust washer, 1-1/4"
#809296 Dana 18 thrust washer 1-1/4" intermediate shaft
In master rebuild kit
2 required
$3.39
Intermediate bearing spacer, 1-1/4"
#809295 Dana 18/Dana 20/Dana 300 Intermediate Shaft Bearing Spacer, 1-1/4", (3 Required)
In master rebuild kit
3 required
$3.67
Intermediate needle rollers, 1-1/4"
#809294 Bearings, loose needle rollers, Dana 18 & 20 transfer cases intermediate shaft, 1-1/4”
In master rebuild kit
Loose rollers
Call to order
Intermediate gear
Not sold separately
Intermediate bearing spacer, 1-1/4"
#809295 Dana 18/Dana 20/Dana 300 Intermediate Shaft Bearing Spacer, 1-1/4", (3 Required)
In master rebuild kit
$3.67
Intermediate needle rollers, 1-1/4"
#809294 Bearings, loose needle rollers, Dana 18 & 20 transfer cases intermediate shaft, 1-1/4”
In master rebuild kit
Loose rollers
Call to order
Intermediate bearing spacer, 1-1/4"
#809295 Dana 18/Dana 20/Dana 300 Intermediate Shaft Bearing Spacer, 1-1/4", (3 Required)
In master rebuild kit
$3.67
Intermediate gear thrust washer, 1-1/4"
#809296 Dana 18 thrust washer 1-1/4" intermediate shaft
In master rebuild kit
$3.39
Shift fork, range
Not sold separately
Set screw
Not sold separately
Rear output shaft
Not sold separately
Rear output sliding gear
Not sold separately
Input gear, 26-tooth
#937339 Dana 18/20 Input Gear, L26-S15T x 6 Spline, 20° Helix
L26-S15T x 6-spline
$135.75
Input gear, 26-tooth, 17.5° helix (T150)
#5354506 Dana 20 Input Gear, L26-S15T x 6 Spline, 17.5° Helix (T150)
$139.75
Bottom cover (pan) gasket
#A954 Jeep/IH Dana 18/Dana 20/Dana 300 Transfer Case Pan Gasket
In master rebuild kit
$5.00
Bottom cover bolt, 5/16-18
Not sold separately
Drain plug, 1/2-20
#090-005 Drain Plug, 1/2-20, 7/8" Hex, w/ Gasket
$4.37
Bottom cover (pan) — billet, deep
#D328-D Jeep Dana 18, 20, or 300 Transfer Case Billet Bottom Cover Pan, Deep
Novak upgrade
Holds 16 oz more fluid
$198.00
Fill plug
Not sold separately
Shift rail thimble cover
#934281 Dana 20/Dana 300 Shift Rod Cover Thimble
In master rebuild kit
$4.83
Shift rail thimble cover
#934281 Dana 20/Dana 300 Shift Rod Cover Thimble
In master rebuild kit
$4.83
Stud, 3/8-16
Not sold separately
Front face gasket, 4" bore
#8179 Dana 18/20 Front Face Gasket 4" Bore
In master rebuild kit
$4.78
Lock washer
Not sold separately
Bolt, 3/8-16 x 1-1/4"
Not sold separately
Lock washer
Not sold separately
Bolt, 3/8-16 x 1-1/4"
Not sold separately
Transfer case housing
Not sold separately
Front output rear tapered roller bearing
#942113 Dana 20 Front Output Shaft Tapered Roller Bearing
In master rebuild kit
$25.95
Front output rear bearing cup
#52883 Dana 18/Dana 20 Front Output Bearing Cup
In master rebuild kit
$13.95
Rear bearing cap shim pack
#A6753-N Dana 18/20 Rear Bearing Shim Pack (Novak Made)
In master rebuild kit
$20.95
Rear bearing cap shim pack
#A6753-N Dana 18/20 Rear Bearing Shim Pack (Novak Made)
In master rebuild kit
$20.95
Rear bearing cap shim pack
#A6753-N Dana 18/20 Rear Bearing Shim Pack (Novak Made)
In master rebuild kit
$20.95
Front output rear bearing cap — billet
#933725-K Dana 20 Front Output Rear Bearing Billet Cap
Novak upgrade
Seals and shims from the inside
$104.00
Bolt, 3/8-16 x 3/4"
Not sold separately
Bolt, intermediate shaft lock plate
Not sold separately
Intermediate shaft lock plate
#JA001001 Dana 18/Dana 20/Dana 300 Intermediate Shaft Retainer Plate
In master rebuild kit
$2.19
O-ring, Novak intermediate shaft
#9452K84 O-Ring, 3/32" Wide, 1" ID x 1-3/16" OD, Buna-N
In master rebuild kit
$0.14
Intermediate shaft, 1-1/4" — Novak hardened
#942115 Dana 18/Dana 20/Dana 300 Transfer Case Intermediate Gear Idler Shaft, 1-1/4" (Premium Hardened)
In master rebuild kitNovak upgrade
$113.50
Intermediate shaft kit, 1-1/4"
#TCL Dana Transfer Case Intermediate Shaft Kit 1-1/4"
Novak upgrade
Shaft, O-rings, thrust washers, bearings & snap ring
$159.50
Breather vent
Not sold separately
Rear output housing
Not sold separately
Rear output housing gasket
#10149 Dana 18/Dana 20 Transfer Case Gasket Set (Premium)
In master rebuild kit
Sold in the 10149 gasket set
$35.95
Bolt
Not sold separately
Rear output yoke, 10-spline 1310
#933734 Dana 18/Dana 20 U-joint yoke 10 Spline 1310
$98.25
Rear output yoke, 26-spline 1310
#935685 Dana 20 U-joint yoke 26 spline 1310
$66.00
Yoke washer
#A1028 Dana 18/Dana 20/Dana 300 yoke washer
In master rebuild kit
$4.29
Yoke nut, nylock
#801367 Dana 18/Dana 20/Dana 300 yoke lock nut
In master rebuild kit
$5.74
Rear output seal, double-lip
#923896 Dana 18/ Dana 20/ Dana 300 front & rear output seal (double lipped premium)
In master rebuild kit
$26.95
Rear output tapered roller bearing (rear)
#933737 Dana 20/Dana 300 Rear Tailhousing Tapered Roller Bearing
In master rebuild kit
$12.95
Rear output bearing cup (rear)
#15245 Dana 20/Dana 300 Rear Cap Bearing Cup, Rear
In master rebuild kit
$13.95
Bolt
Not sold separately
Speedometer driven gear bushing
Not sold separately
Speedometer driven gear
Not sold separately
Speedometer sleeve
Not sold separately
Rear output shim pack
#933743 Dana 20/300 Rear Output Shim Pack
In master rebuild kit
$6.25
Rear output shim pack
#933743 Dana 20/300 Rear Output Shim Pack
In master rebuild kit
$6.25
Speedometer drive gear
Not sold separately
Rear output bearing cup (front)
#52800 Dana 20/Dana 300 Rear Cap Bearing Cup, Front
In master rebuild kit
$10.95

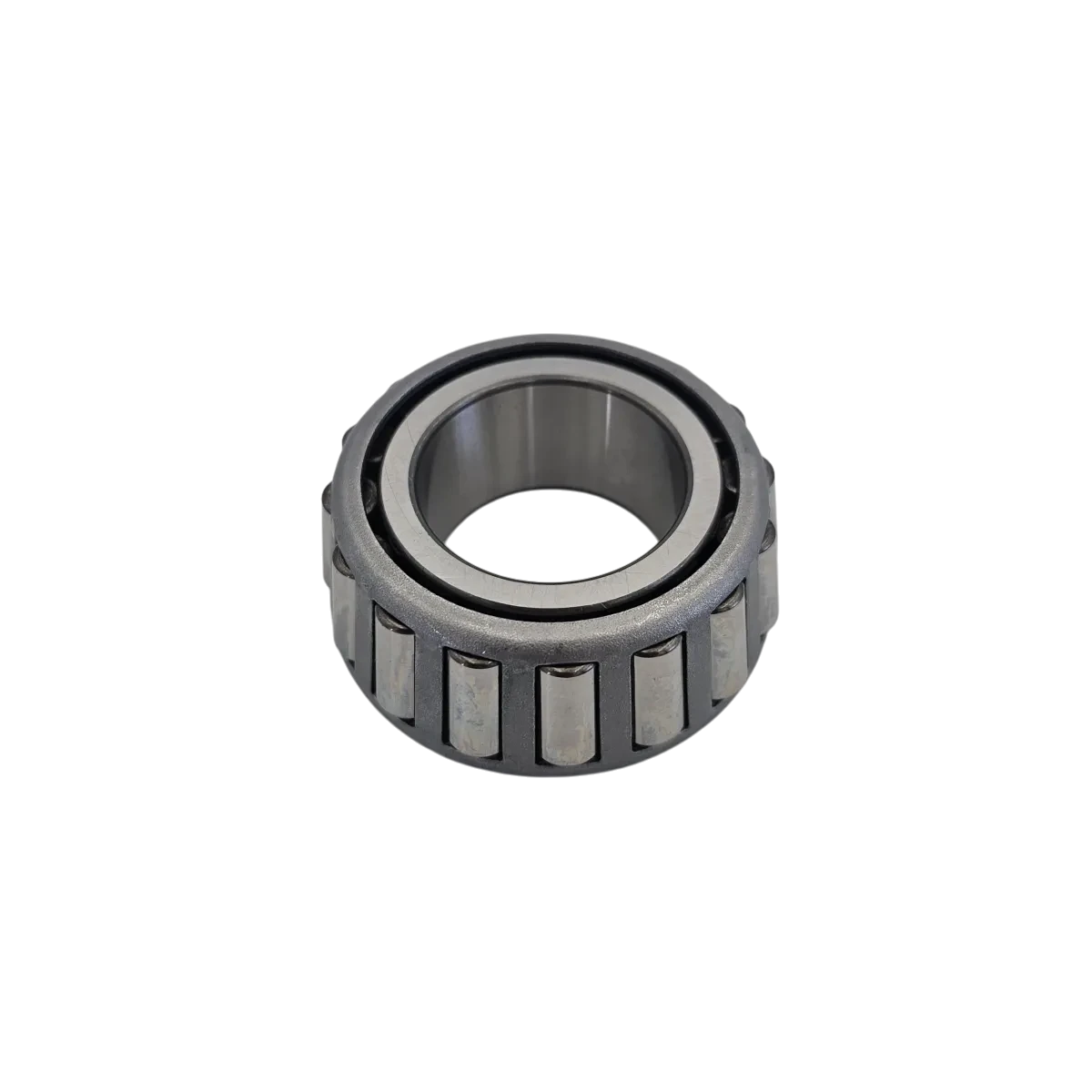

Rear output tapered roller bearing (front)
#52799 Bearing, tapered roller, rear tailhousing front, Dana 20 & 300 (1980) transfer cases
In master rebuild kit
Call to order
Rear output housing, companion-flange style (some models)
Not sold separately

Also for the Dana 20 — not pictured

Input gear washer, 7/8"
#A1410 Flat Washer, 7/8", Dana 18/20
In master rebuild kit
$4.00
Input gear nut, nylock
#940970 Jeep/Dana Mainshaft Nut, Nylock (7/8"-16)
In master rebuild kit
$4.79
Poppet ball plug screw, aluminum
#942385 Dana 20/ Dana 300 Transfer Case Shifter Poppet Ball Plug Screw (Aluminum)
In master rebuild kit
$2.21
O-ring, poppet plug screw
#9751K117 O-Ring, 0.082" Wide, 7/16" Tube, 0.530" ID x 0.694" OD
In master rebuild kit
$0.16
Gasket set (premium)
#10149 Dana 18/Dana 20 Transfer Case Gasket Set (Premium)
In master rebuild kit
$35.95
Gasket, seal & shim pack set
#GS18 Dana 18/Dana 20 Transfer Case Gasket, Seal & Shim Pack
$119.00
Small parts kit, 1-1/4" shaft
#935758 Kit, small parts, Dana 1-1/4” shaft transfer cases
In master rebuild kit
Call to order
Shift lever spring
#801332 Dana 18 & 20 Transfer Case Shift Lever Spring
$1.43

Turn Key, Fully Rebuilt Transfer Case

Our Dana 20 is professionally and meticulously rebuilt. We use the best components, including bearings, bushings, seals and gaskets built by our Dana 20 specialists and experts. All known updates and improvements are performed. Put the experience of thousands of Dana transfer case rebuilds to work for your Jeep.

Because of the variations involved and shipping options available, we encourage you to contact us directly by phone or e-mail. We will help you put together the transfer case which best fits your requirements.

Note that we can supply a core Dana 20 or we can arrange to have yours sent in with a core credit of $400. Transfer cases are built to order and typically take 1-3 weeks to ship. Contact us for current build times. Costs range from $1,667. to $1,795. depending on your configuration, shifters, etc.

Logistics

your transfer case package is palleted and wrapped (if trucking is required) or packaged in a double-wall box (if by parcel), fully insured and ready to bolt into your application. Novak will seek the best competitive shipping rates with our extensive trucking networks. It will arrive at a location of your choosing, though we strongly recommend a business location with a dock / forklift for delivery (if trucking), as residential and liftgate fees can add up to an extra $100. per delivery.

Parts for the Dana Model 20 Transfer Case
