Parts for the
Dana Model 300 Transfer Case

Name: Dana 300 Gaskets & Seals Set w/ Shim Packs
Brand: Novak
SKU: GS300
Price: 130.75 USD
Availability: InStock

Shop individual Dana 300 parts on the exploded diagramClick any number on the diagram to find that part · 52 parts available online dana 300 transfer case

The Jeep & IH Dana Spicer 300 is surely one of the most respected gear drive transfer cases of all time. Professional level repair, assembly and upgrade work is possible for the conscientious shade tree builder.

In addition to our master rebuild kits, we offer nearly all parts at the component level, as well as several upgrade part options.

These kits fit all Jeep Dana 300 Transfer cases and most IH Dana 300 transfer cases.

The Master Rebuild Kit

Our master rebuild kit has been assembled for our customer's rebuilds as well as our own. It is the most complete kit we've seen anywhere and features all bearings, seals, gaskets, O-rings, fork inserts, output yoke nuts & washers, shims & small parts - everything required to bring your 300 to peak strength and tune. We use only premium (Timken®, BCA®, Nachi®, Torrington® and Koyo®) bearings. Our exclusive intermediate shafts are made at Novak from a triple-alloy gear steel and case-hardened to exceptional hardness and are the strongest and hardest shafts available. They also feature o-ring grooves at both ends, assuring a better seal than factory; extra o-rings are also included, as is our comprehensive rebuild guide.

The Novak kit outshines the budget kits on the market in several ways, including:

Timken seals
Premium, domestic gaskets
Specially hardened alloy intermediate shaft, with o-ring seals (incl extra o-rings)
Shift fork shoes
Shift rail thimble covers
Poppet balls
Poppet springs
Poppet plugs
Epansion plugs
Yoke washers
Yoke nuts
New intermediate shaft retainer plate

These kits are based on our own rebuilds, of which we do hundreds every year.

There are three master rebuild kits available; one for each of the three versions of the Model 300. If you're unsure of whether you've got the 1980, short output style 300, or the 1981- , long output style 300, read our Knowledge Base article, here.

Master rebuild kit 300MR-1 for Dana Model 300 transfer case.

300MR-1;300MR-2;300MR-IH

Right Stuff Gasket Maker Valvoline 80W-90 GL-5 Gear Oil, 1 qt 3 qt fill Dana 300 billet front output bearing cap Dana 300 billet bottom pan

Options Label:

The Intermediate Shaft Kits

This kit is a reduced version of our master kits. It contains the specially hardened intermediate shaft, O-rings, thrust washers, bearings and snap ring.

Kit TCL, intermediate shaft, Dana 1-1/4" transfer cases

TCL

Valvoline 80W-90 GL-5 Gear Oil, 1 qt 3 qt fill

Dana 300 Billet Bottom Cover Pans

These anodized billet aluminum bottom pans solves a few Dana transfer case dilemmas:

Thick, machined mating flange replaces the dimpled, warped sheet metal original
Drip free sealing surface with the use of RTV or RTV + gasket
Increased fluid capacity by 16 oz (deep version only)
Adds rigidity to the structure of the transfer case
Superior heat shedding

Included are the stainless socket head button cap screws, drain plug and sealing washer. Read the review at 4x4review.com

Kit D328-S, billet aluminum bottom cover pan, Dana transfer cases, standard depth version

D328-D

Valvoline 80W-90 GL-5 Gear Oil, 1 qt 3 qt fill Dana 300 billet front output bearing cap

D328-S

Valvoline 80W-90 GL-5 Gear Oil, 1 qt 3 qt fill Dana 300 billet front output bearing cap

Dana 300 Gaskets & Seals Set

There's not a better gaskets and seals kit available.

GS300

Valvoline 80W-90 GL-5 Gear Oil, 1 qt 3 qt fill Right Stuff Gasket Maker

Dana 300 Front Output Rear Bearing Cap

Kit, Dana 300 front output rear bearing billet cap

The Novak Dana 300 front output rear bearing caps were designed as an upgrade to eliminate any gear oil leaking from this location. The factory bearing/shim cover is one of the few notorious locations a leak can be found on the Dana 300 case. This is due to the shims being placed between the case & the cap, with only a copper spray-gasket applied to the shims to seal the cover. The Novak shim/bearing cover utilizes a three tier O-ring setup to seal the case from leaking; two O-rings per bolt, one inside & one outside the cover, as well as one larger O-ring following the hole path inside the cap. This triple O-ring design is sure to eliminate your likely present oil leak at the bearing/shim cover. Installation of these kits is quite simple, especially with the help of the included detailed instructions.

8131657-K

Valvoline 80W-90 GL-5 Gear Oil, 1 qt 3 qt fill

Dana 300 Ultra-Short HD Rear Output Assembly

Kit 300RX, tailhousing assembly, Jeep Dana 300, Heavy duty 32-spline, extra short

Novak's 300RX rear output shaft and housing assembly. More details here....

Installation Requirements

It is very common for our customers to do top-level rebuild work, using good methods and by following our included instruction guide. We suggest the rebuilder have access to a set of snap ring pliers, and a small arbor press, in addition to standard shop tools.

Turn Key, Fully Rebuilt Transfer Case

Our Dana 300 is professionally and meticulously rebuilt. We use the best components, including bearings, bushings, seals and gaskets built by our Dana 300 specialists and experts. All known updates and improvements are performed. Put the experience of thousands of Dana transfer case rebuilds to work for your Jeep.

Because of the variations involved and shipping options available, we encourage you to contact us directly by phone or e-mail. We will help you put together the transfer case which best fits your requirements.

Note that we can supply a core Dana 300 or we can arrange to have yours sent in with a core credit of $400. Transfer cases are built to order and typically take 1-3 weeks to ship. Check out our prices here : Rebuild Services

Logistics

your transfer case package is palleted and wrapped (if trucking is required) or packaged in a double-wall box (if by parcel), fully insured and ready to bolt into your application. Novak will seek the best competitive shipping rates with our extensive trucking networks. It will arrive at a location of your choosing, though we strongly recommend a business location with a dock / forklift for delivery (if trucking), as residential and liftgate fees can add up to an extra $100. per delivery.

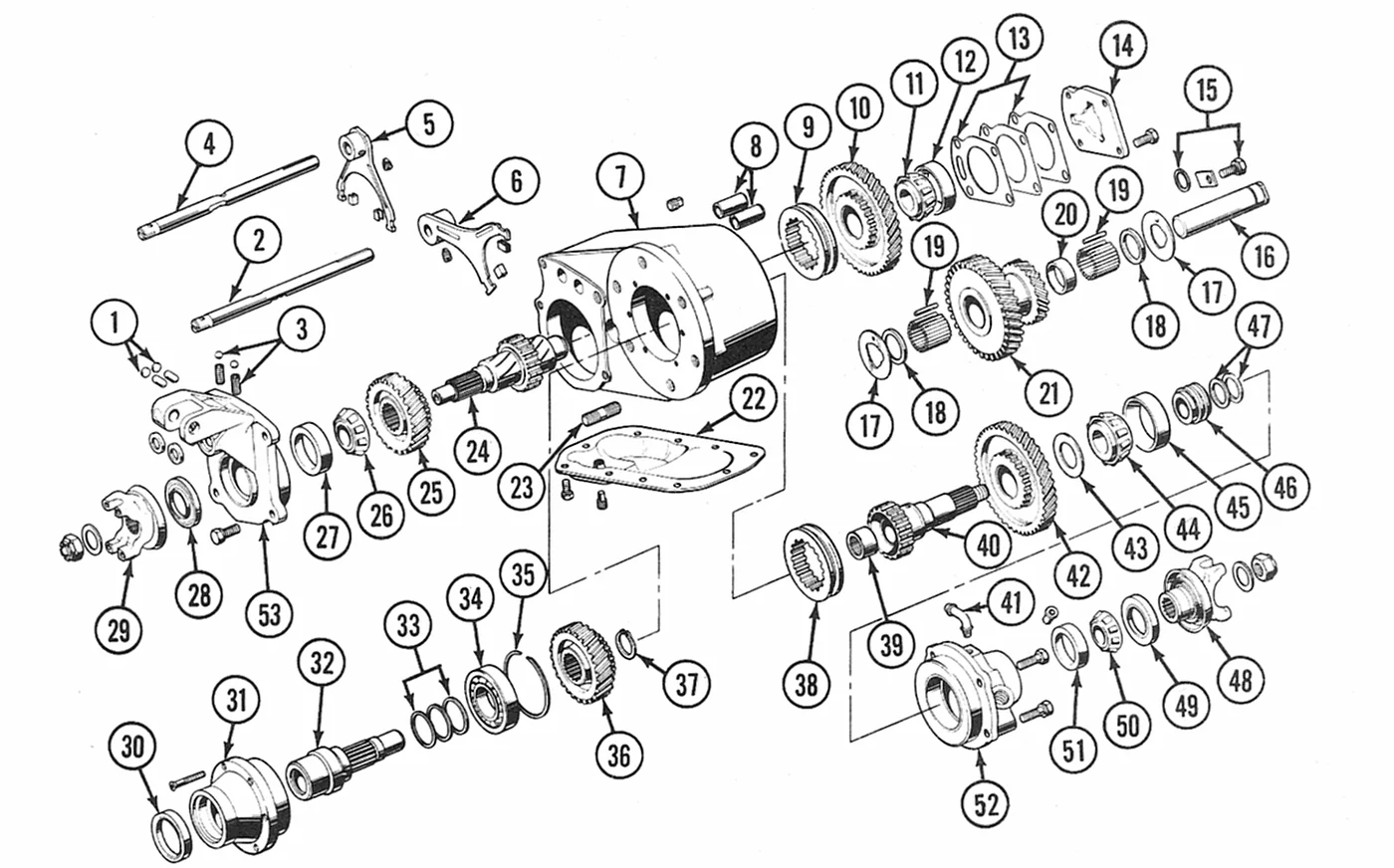

Dana 300 Exploded Parts Diagram

Click a number on the diagram to find that part, or search the list. 52 of the 74 parts listed can be ordered online — for anything else call 877-602-1500.

1980 cases (short rear output) and 1981–86 cases (long rear output) use a few different bearings — noted on those parts.

Pinch or use + to zoom

Available onlineCall to order / not sold separately

Shift rail interlock plug
#555-003 Expansion Cup Plug, 7/16" OD x 0.250" Height
In master rebuild kit
Call to order
Shift rail — stainless replacement kit
#D300SRK Dana 300 Stainless Shift Rail Kit (Stock Replacement)
Novak upgrade
Kit includes both rails
$157.00
Poppet ball
#38G25 Detent Poppet Ball, 0.375"
$0.89
Poppet spring
#939001 Dana 300 Transfer Case Shift Poppet Spring
In master rebuild kit
$0.88
Shift rail — stainless replacement kit
#D300SRK Dana 300 Stainless Shift Rail Kit (Stock Replacement)
Novak upgrade
Kit includes both rails
$157.00
Shift fork, front output
#8131665 Dana 300 Front Output Shaft Shift Fork
$73.50
Shift fork, range
Not sold separately
Transfer case housing
Not sold separately
Shift rail thimble cover
#934281 Dana 20/Dana 300 Shift Rod Cover Thimble
In master rebuild kit
$4.83
Clutch sleeve
#8131667 Collar, slider, Dana 300 range or mode shifter
Call to order
Front output drive gear
Not sold separately
Front output rear tapered roller bearing
#3156063 Dana 300 Front Output Tapered Roller Bearing
In master rebuild kit
$17.95
Front output rear bearing cup
#3156062 Dana 300 Front Output Tapered Bearing Cup
In master rebuild kit
$8.84
Front output shim pack
#8131668 Dana 300 Front Output Shaft Shim Pack
In master rebuild kit
$14.95
Front output rear bearing cap — billet
#8131657-K Dana 300 Front Output Rear Bearing Billet Cap
Novak upgrade
$92.00
Intermediate shaft lock plate
#JA001001 Dana 18/Dana 20/Dana 300 Intermediate Shaft Retainer Plate
In master rebuild kit
$2.19
Intermediate shaft, 1-1/4" — Novak hardened
#942115 Dana 18/Dana 20/Dana 300 Transfer Case Intermediate Gear Idler Shaft, 1-1/4" (Premium Hardened)
In master rebuild kitNovak upgrade
$113.50
Intermediate shaft kit, 1-1/4"
#TCL Dana Transfer Case Intermediate Shaft Kit 1-1/4"
Novak upgrade
Shaft, O-rings, thrust washers, bearings & snap ring
$159.50
Intermediate gear thrust washer
#809296 Dana 18 thrust washer 1-1/4" intermediate shaft
In master rebuild kit
$3.39
Intermediate bearing spacer, thin
#809295 Dana 18/Dana 20/Dana 300 Intermediate Shaft Bearing Spacer, 1-1/4", (3 Required)
In master rebuild kit
$3.67
Intermediate needle rollers
#809294 Bearings, loose needle rollers, Dana 18 & 20 transfer cases intermediate shaft, 1-1/4”
In master rebuild kit
Loose rollers
Call to order
Intermediate bearing spacer, thick
#8131661 Dana 300 Transfer Case Intermediate Gear Needle Bearing Spacer
$19.50
Intermediate gear
Not sold separately
Bottom cover (pan) — billet, standard depth
#D328-S Jeep Dana 300 Transfer Case Billet Bottom Cover Pan, Standard Depth
Novak upgrade
$158.50
Bottom cover (pan) — billet, deep
#D328-D Jeep Dana 18, 20, or 300 Transfer Case Billet Bottom Cover Pan, Deep
Novak upgrade
Holds 16 oz more fluid
$198.00
Bottom cover (pan) gasket
#A954 Jeep/IH Dana 18/Dana 20/Dana 300 Transfer Case Pan Gasket
In master rebuild kit
$5.00
Stud, 3/8-16 x 2"
Not sold separately
Front output shaft
#8131660 Shaft, front output, Dana 300 transfer case, 26 spline
Call to order
Front output shaft gear
Not sold separately
Front output front tapered roller bearing
#3156063 Dana 300 Front Output Tapered Roller Bearing
In master rebuild kit
$17.95
Front output front bearing cup
#3156062 Dana 300 Front Output Tapered Bearing Cup
In master rebuild kit
$8.84
Front output seal, double-lip
#923896 Dana 18/ Dana 20/ Dana 300 front & rear output seal (double lipped premium)
In master rebuild kit
$26.95
Front output yoke
#8131656 Dana 300 Output U-joint yoke
$60.75
Front output yoke kit, U-bolt style
#D300YOKEUBK Dana 300 yoke kit U-bolt style, includes bolts, washers, nuts and seal
Includes bolts, washers, nuts and seal
$64.99
Input bearing retainer seal
#471869 Dana 300 & New Process Input Shaft Oil Seal (Novak Universal Adapters)
In master rebuild kit
$29.95
Input bearing retainer — billet
#8131681 Dana 300 Front Input Bearing Retainer, Billet (Factory Replacement)
Novak upgrade
$101.75
Input shaft, 23-spline
#8131687E Dana 300 Input Shaft, 23 Spline (Extended Depth, Factory Length)
$208.00
Input shaft bearing kit with retainer, preassembled
#D300-ISK Dana 300 Input Shaft Bearing Kit w/ Retainer (Preassembled)
Novak upgrade
$293.00
Input shaft shim pack
#8131689 Dana 300 Input Shaft Shim Pack
In master rebuild kit
$17.95
Input shaft bearing (1981–86)
#6209 Ball Bearing 6209, 85mm x 45mm
In master rebuild kit
$18.95
Input shaft bearing, snap-ring groove (1980)
#6209N Bearing, deep groove ball, single row, with external retaining ring groove. T176 and SM420 transmissions front input
In master rebuild kit
Call to order
Input bearing retainer snap ring
#8131683 Dana 300 Input Bearing Retainer Snap Ring
$13.95
Input gear
#8131685 Gear, input, Dana 300 transfer case
Call to order
Input shaft to gear snap ring
#8131686 Dana 300 Input Shaft to Gear Snap Ring
$3.14
Clutch sleeve
#8131667 Collar, slider, Dana 300 range or mode shifter
Call to order
Input shaft rear needle bearing set
#JH1612 Dana 300 (Jeep/IH) & Dana 20 (Ford/Chevy) Needle Bearing Set (Input/Output)
In master rebuild kit
$29.95
Rear output shaft
Not sold separately
Vent
Not sold separately
Rear output clutch gear
Not sold separately
Thrust washer
Not sold separately
Rear output front tapered roller bearing (1981–86)
#25880 Dana 300 Rear Output Tapered Roller Bearing (Front 1981-1986)
In master rebuild kit
$20.95
Rear output front tapered roller bearing (1980)
#52799 Bearing, tapered roller, rear tailhousing front, Dana 20 & 300 (1980) transfer cases
In master rebuild kit
Call to order
Rear output front bearing cup
#52800 Dana 20/Dana 300 Rear Cap Bearing Cup, Front
In master rebuild kit
$10.95
Speedometer drive gear
Not sold separately
Rear output shim pack
#933743 Dana 20/300 Rear Output Shim Pack
In master rebuild kit
$6.25
Rear output yoke
#8131656 Dana 300 Output U-joint yoke
$60.75
Rear output seal, double-lip
#923896 Dana 18/ Dana 20/ Dana 300 front & rear output seal (double lipped premium)
In master rebuild kit
$26.95
Rear output rear tapered roller bearing
#933737 Dana 20/Dana 300 Rear Tailhousing Tapered Roller Bearing
In master rebuild kit
$12.95
Rear output rear bearing cup
#15245 Dana 20/Dana 300 Rear Cap Bearing Cup, Rear
In master rebuild kit
$13.95
Rear output housing
Not sold separately
HD 32-spline extra-short tailhousing assembly
#300RX Dana 300 HD 32-Spline Extra-Short Tailhousing Assembly
Novak upgrade
$779.00
Front output bearing cap
Not sold separately

Also for the Dana 300 — not pictured

Yoke nut, nylock
#801367 Dana 18/Dana 20/Dana 300 yoke lock nut
In master rebuild kit
$5.74
Yoke washer
#A1028 Dana 18/Dana 20/Dana 300 yoke washer
In master rebuild kit
$4.29
Shift rail oil seal, double-lip
#A974 Dana 18/Dana 20/ Dana 300 Shift Rod Oil Seal (premium double lipped)
In master rebuild kit
$9.95
O-ring, Novak intermediate shaft
#9452K84 O-Ring, 3/32" Wide, 1" ID x 1-3/16" OD, Buna-N
In master rebuild kit
$0.14
Poppet ball plug screw, aluminum
#942385 Dana 20/ Dana 300 Transfer Case Shifter Poppet Ball Plug Screw (Aluminum)
In master rebuild kit
$2.21
O-ring, poppet plug screw
#9751K117 O-Ring, 0.082" Wide, 7/16" Tube, 0.530" ID x 0.694" OD
In master rebuild kit
$0.16
O-ring, speedometer housing
#9262K289 Dana/New Process Speedometer Seal O-Ring (3 mm x 40 mm, Buna-N)
In master rebuild kit
$1.13
Shifter flanged bushing
#5360135 Dana 300 Shifter Flanged Bushing (2 required)
In master rebuild kit
2 required
$2.21
Shift fork insert pad
#8131670 Pad/Shoe, shift fork insert, Dana 300
In master rebuild kit
4 required
Call to order
Shifter indicator switch
#5012888 Dana 300 Shifter Indicator Switch
$11.95
Gasket set
#G300 Dana 300 Gasket Set
In master rebuild kit
$25.95
Gaskets & seals set with shim packs
#GS300 Dana 300 Gaskets & Seals Set w/ Shim Packs
$130.75

Parts for the Dana Model 300 Transfer Case
